Q235 Steel Kwikstage Scaffolding For Construction

Name: Q235 Steel Kwikstage Scaffolding For Construction
SKU: 3233
Availability: InStock

Liên hệ

Accessories Parts Cup Lock System Q235 Steel Scaffolding Construction Materia Galvanized Kwikstage

Kwikstage scaffolding is the 3rd type of system scaffold. It includes stars on the standards. So it is called star scaffolding. Kwikstage ledgers and braces include wedge pins. The wedges pins are locked with stars of the kwikstage standards. Kwikstage system helps a quick erection in construction and staging. There are painted, powder-coated, and galvanized kwikstage scaffold materials for anti-rusty purposes.

Material: Q235 carbon steel

Pipe diameter: 48.3 mm

Pipe wall thickness: 3.2 mm or / 4.0 mm

Standard compliance:

AS/NZS 1576: Primarily Australian and New Zealand standard.

BS 1139: British standard, commonly used in the UK.

EN 74-1: European standard.

Samples: Provide

Shipping: Support Sea freight

Place of Origin: Vietnam

Payments: L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time: 1-1000(pieces):30(days),>1000(pieces):To be negotiated(days)

Customization: Customized logo (Min. Order: 1000 sets),Customized packaging (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)

Brand Name: Kawasaki

5.00 trên 5 dựa trên 1 đánh giá

(Product reviews )

Categories: Kwikstage Scaffolding (Giàn giáo nêm), Scaffolding

Description

Product detail

Scaffolding Part Type	Kwikstage Scaffolding System
Style	Kwikstage Scaffolding
Surface treatment	Galvanized
Advantage	Easy Assembling
Size	Standard Size

Kwikstage scaffolding is also called quick stage scaffold. It is a type of easy erect modular system scaffold born in the UK and used popularly in the UK, Ireland, Australia, South Africa, and Gulf.

Kwikstage systems include prefabricated wedge locking components: kwikstage standards, ledgers, kwikstage transoms, base jacks, diagonal braces, ladder beam, walk boards, etc.

Among them, kwiktage transom secures the scaffold board and work platform safety. Make them fix on the kwikstage tower without moving.

Kwikstage tie bars give side protection for kwikstage brackets during side and suspended scaffold construction.

Unlike other Kwikstage scaffolding suppliers, Kawasaki rapid-assembly scaffolding system requires only a few components to erect scaffolding up to 100 meters high. Suitable for various shapes and types of scaffolding, it’s economical. Painted and galvanized steel rapid-assembly scaffolding is widely used in many countries, including Australia, the UK, Ireland, South Africa, and Indonesia.

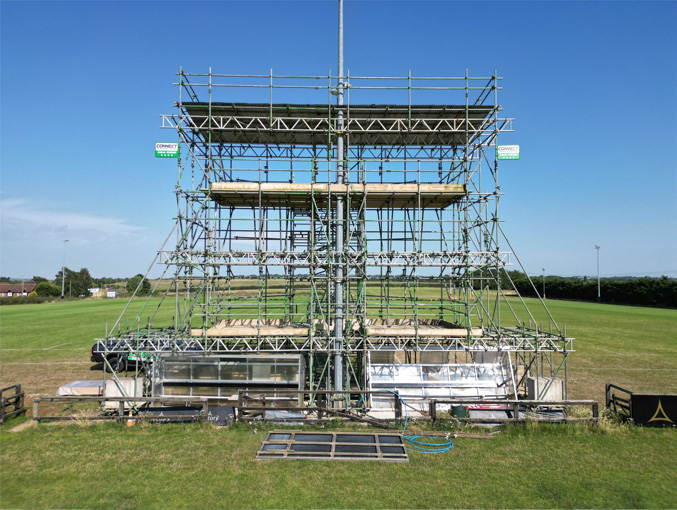

Kwikstage Scaffolding System

Kwikstage scaffolding can be fastened once connected, so it is also called quickstage scaffolding system due to its speedy installation. Kwikstage Scaffolding is the one of the best scaffolding systems, reliable in Australia for its flexibility, strength and easy of installation.
This scaffolding system saves erection and dismantling time, reducing labour costs and creating time for what matters most –getting the job done!

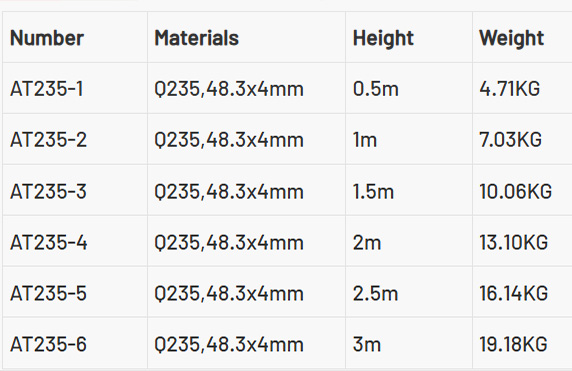

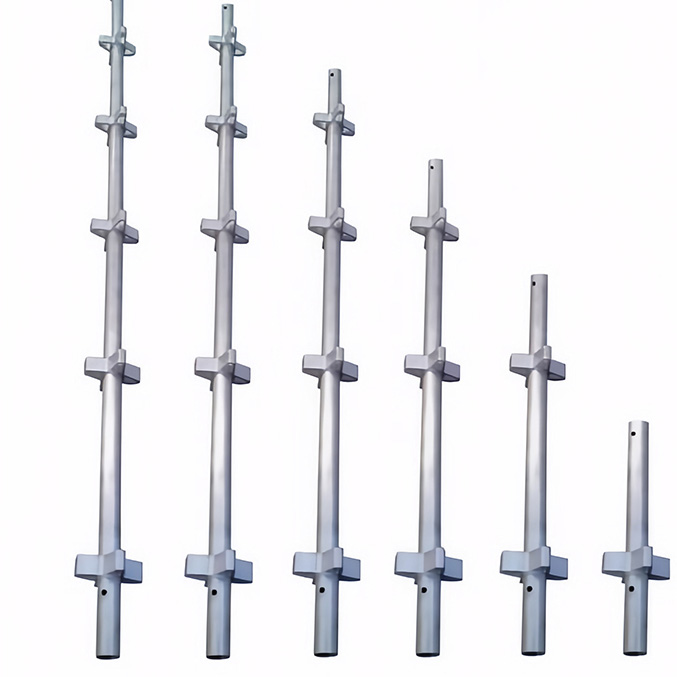

Kwik Stage Scaffold Standard

According to UK requirements, Kwikstage standard scaffolding is made from OD 48.3 x 4.0 mm scaffolding tubing. All scaffolding tubing manufactured for the Kwikstage standard undergoes BS1139 general assessment.

Kawasaki Scaffolding creates standard Kwikstage scaffolding according to the ISO9001 management and quality assurance system. We manage and inspect steel grade, weld quality, requirements, and dimensions 24 hours a day throughout the manufacturing process.

Kawasaki Kwikstage scaffolding requirements are inspected by SGS. You can also obtain the results of internal inspections for your Kwikstage scaffolding orders. Examinations include safety and security filling competence tests.

Let us know the Kwikstage scaffolding standard you require to obtain the currently affordable cost.

Kwikstage Scaffolding System Components

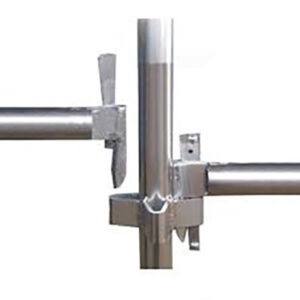

Kwikstage Ledgers

Standard kwikstage ledgers are with thumbs and wedge pins. You can find 3′-8′ standard ledger sizes here.

Kwikstage Beam Bracket

The kwikstage beam bracket is a part of Indonesia speedshore system. It give extra support to the scaffold tower in construction.

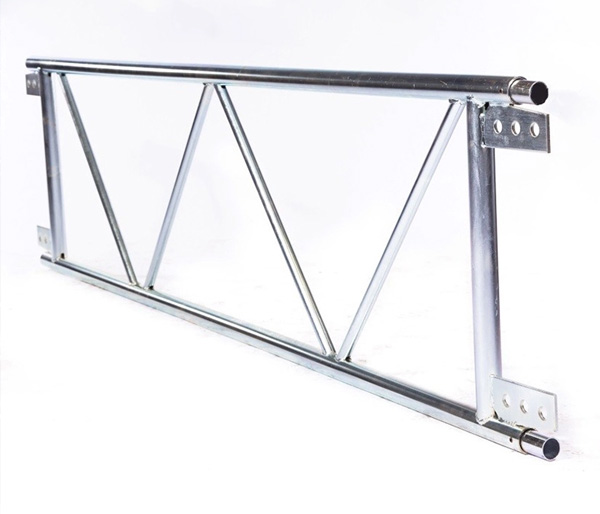

Kwik stage Scaffold Beam

Kwikstage Scaffold Beams are prefabricated and essential scaffolding components which are used for a variety of applications such as bridging scaffolds, suspended platform scaffolds, roofing, staging and lighting needs.

Kwikstage Scaffolding Transom Ladder Beam

Kwikstage scaffold transom is made of steel angle iron. It is a horizontal member of the quickstage system. Scaffold battens without hooks work with kwikstage transoms.

Kwikstage Scaffold Climbing Ladder

You can find aluminum alloy stairs in two sizes, 2.4 x 1.5 meters and 2.4 x 2.0 mm, suitable for the Kwikstage scaffolding system. The stairs are equipped with internal and external handrails for safety.

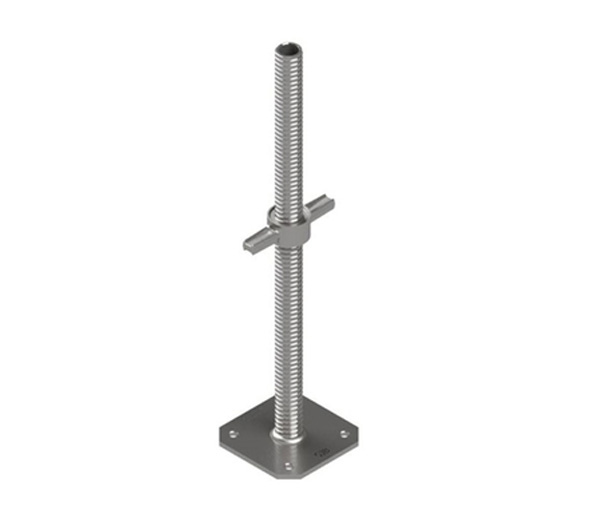

Kwikstage Base Jacks

The base jack is used as the base of the scaffolding tower to level the scaffold. It is adjusted by rotating the wing nut up and down the threaded bar.

How To Install The Kwikstage Scaffolding System

Put base jacks in place
Put kwikstage standards on base jack
Connect kwikstage standards by kwikstage ledgers
Put kwikstage transoms between kwikstage standards
Put kwikstage battens on the scaffold transoms
Adjust base jack to make kwikstage ledgers and transoms on the same level
Set kwikstage diagonal braces on kwikstage bays
Put the second layer of kwikstage ledgers and transom.
Put 2nd layer of kwisktage boards
Put kwikstage toe boards at 4 sides of the scaffold board platform
Erect more kwikstage uprights and connect by horizontals, transom, and boards.

Where can I buy the best Kwikstage scaffolding?

For over 20 years, Kawasaki Scaffolding has been producing the best and highest quality Kwikstage scaffolding parts, components, and services in China and abroad!

From having the best and most experienced engineers to build our Kwikstage scaffolding, the most skilled and proficient professionals to create and manufacture our Kwikstage scaffolding parts and components, to a highly skilled team assembling it on-site!

Choose us for the Kwikstage scaffolding you need, and you’ll never regret it!

Tips for using Kwikstage scaffolding

You’re about to start a Kwikstage scaffolding project, but you don’t know where to begin. We’ve compiled some tips to help you use Kwikstage scaffolding!

1. Never use Kwikstage scaffolding without proper support and safety equipment. If the Kwikstage scaffolding collapses, you could not only injure yourself or others, but also damage your property.

2. Before using kwikstage scaffolding for any purpose, always inspect each joint for corrosion or other defects. This is important because kwikstage can be dangerous if it collapses under the weight of objects or people due to faulty joints and support structures.

3. Kwikstage scaffolding is a good temporary building structure. Lightweight and easy to transport, it is ideal for multi-story buildings with narrow staircases. Kwikstage scaffolding should not be used if there are any signs of corrosion or damage.

4. Kwikstages can only withstand a certain weight before becoming unstable and collapsing under pressure. Kwikstages themselves are not safe, and they can be dangerous if they fall. Kwikstage scaffolding is a temporary structure and should only be used until the project is completed. Kwikstages allow for work at heights without worrying about injury or death from falling objects.

Get our free quote now!

Unlike other Kwikstage scaffolding suppliers, Kawasaki Scaffolding never fails to provide what you need quickly!

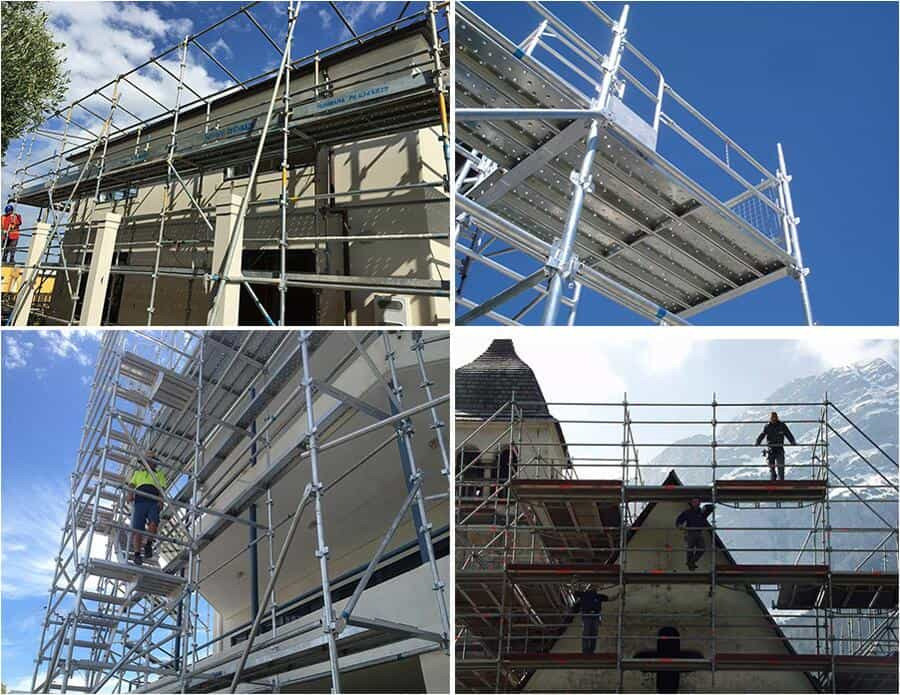

Kawasaki Kwikstage Scaffolding

Kawasaki Kwikstage scaffolding components are suitable for virtually all common scaffolding applications. With its patented interlocking system, you can safely and easily erect durable Kwikstage scaffolding of any height. Kawasaki Kwikstage scaffolding is compatible with a wide range of materials, including aluminum, steel, and wood. The materials used are economical, efficient, and revolutionary.

Furthermore, you can directly use Kawasaki quick-assembly scaffolding as a replacement for traditional scaffolding, as our quick-assembly scaffolding is compatible with any scaffolding tubing and fittings.

Generally speaking, Kawasaki Kwikstage scaffolding is the best choice for construction managers, whether for residential or commercial use.

Due to its many advantages, Kawasaki quick-assembly scaffolding is widely used on construction sites around the world. You can find all components and parts for Kwik Stage scaffolding at Wellmade Scaffolding. We offer the following Kwik Stage scaffolding systems:
